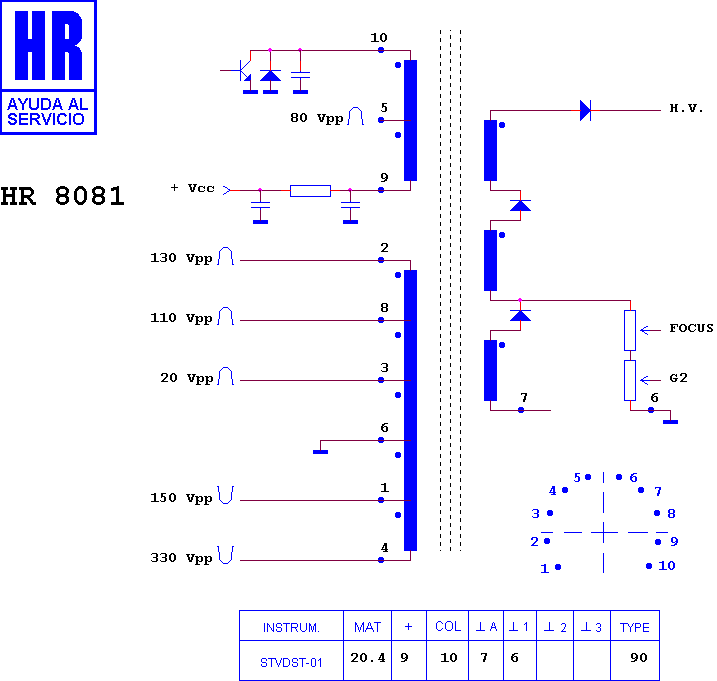

HR 8081

type ST · family 1NP1 · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (2)

FCC 2015 LL · MSH-1FBD22

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7216 · HR 7248 · HR 8147 · HR 7613 · HR 7909 · HR 80062

Search this part in the full database
