HR 7750

type ST · family 1YP · 32 kV maximum anode voltage · 90° deflection · 3 windings · 378 g

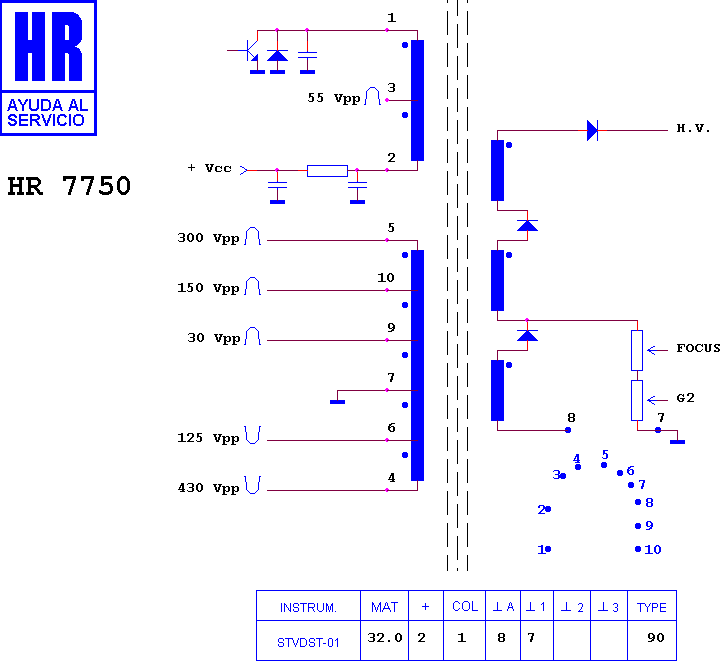

Schematic diagram for HR 7750
schematic

Manufacturer equivalents (4)

047 105 200 · 471-05200 · KFS 60899 · MS00067

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7742 · HR 6075 · HR 8138

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

CURTIS MATHES CHASIS C 87-2
