HR 8020

type ST · family 1AP1 · 24.6 kV maximum anode voltage · 110° deflection · 3 windings · 365 g

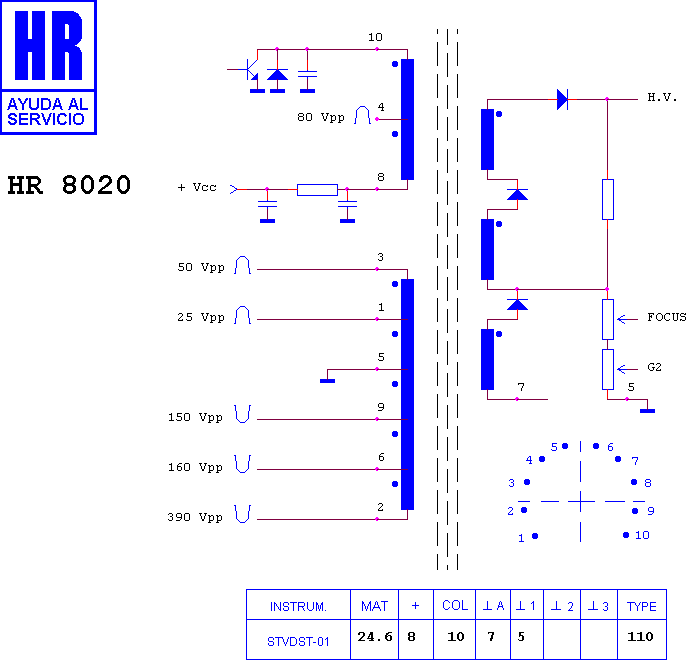

Schematic diagram for HR 8020
schematic

Manufacturer equivalents (8)

003311148 · 105656.70 · 40332-42 · HR 8020 · M12-118 · PET32-07 · RO895 · TR895

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8056 · HR 8957

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (8)

OVP - ORAVA CTV 2501 · OVP - ORAVA CTV 2502 · OVP - ORAVA CTV 2502 E · OVP - ORAVA CTV 256 · OVP - ORAVA CTV 2801 · OVP - ORAVA CTV 2802 · OVP - ORAVA CTV 286 · OVP - ORAVA CTV 289
