HR 8056

type ST · family 1AP1 · 27.5 kV maximum anode voltage · 110° deflection · 3 windings · 366 g

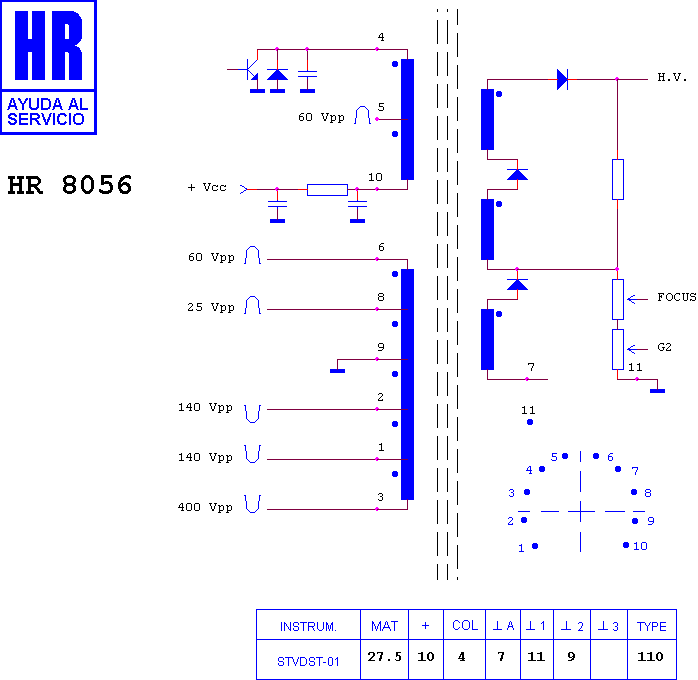

Schematic diagram for HR 8056
schematic

Manufacturer equivalents (3)

105773.50 · 40330-31 · 40330-49

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8020

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
