HR 8077

type ST · family 1AP1 · 19.9 kV maximum anode voltage · 90° deflection · 3 windings · 360 g

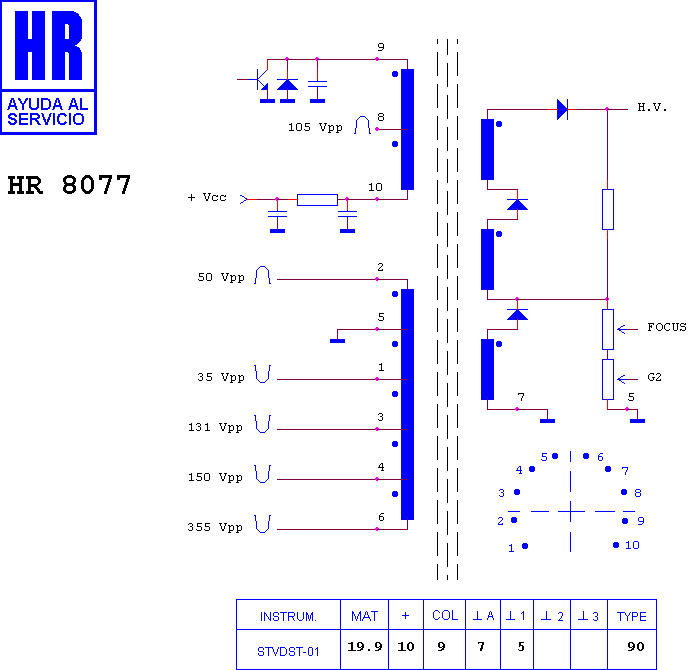

Schematic diagram for HR 8077
schematic

Manufacturer equivalents (7)

003311103 · FAT30377 · HR 8077 · KN30377 · M 12-75 · RO 363 · TR 363

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6471 · HR 7248 · HR 7216

Fitted to (3)

NOKIA - ITT 3384 · VIDEOTON TS 2020 · VIDEOTON TS 2120
