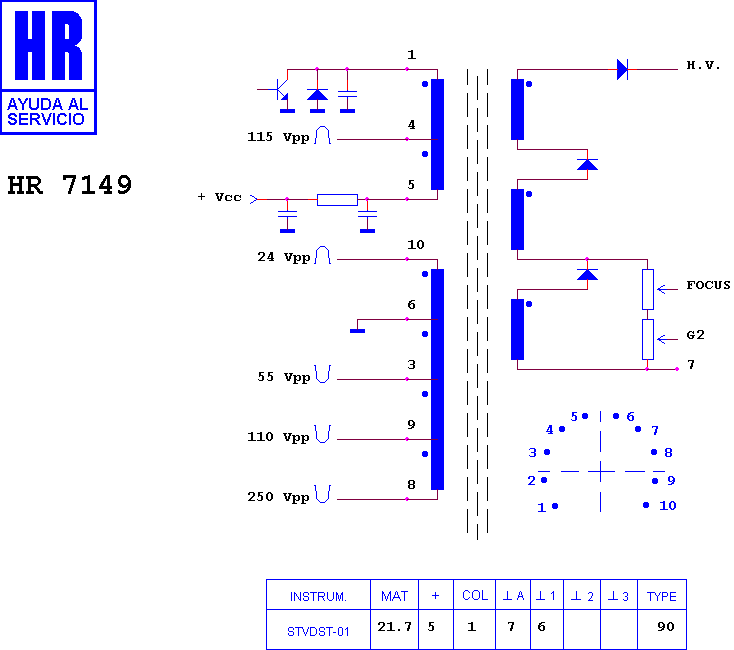

HR 7149

type ST · family 1NP1 · 21.7 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

FBT 402

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7183 · HR 7563 · HR 8747 · HR 6662 · HR 7820 · HR 7474 · HR 8098 · HR 7567 · HR 7148 · HR 8268 · HR 7668 · HR 7858

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
