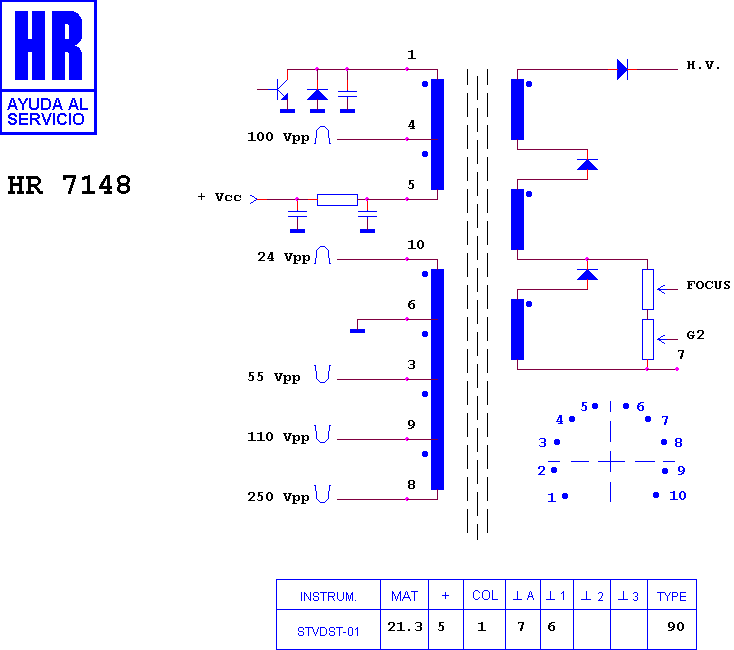

HR 7148

type ST · family 1NP1 · 21.3 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

FBT 820

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7149 · HR 7858 · HR 7474 · HR 7789 · HR 7808 · HR 7910 · HR 7997 · HR 8782 · HR 6662 · HR 8098 · HR 8268 · HR 7609

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

HITACHI 2010 · HITACHI 2011 · HITACHI 2110 · HITACHI CDT 2010 · HITACHI CDT 2011 · HITACHI CDT 2110 · HITACHI CPT 1410 · HITACHI CPT 1410 R · HITACHI CPT 2100
