HR 7039

type ST · family 1NP1 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 260 g

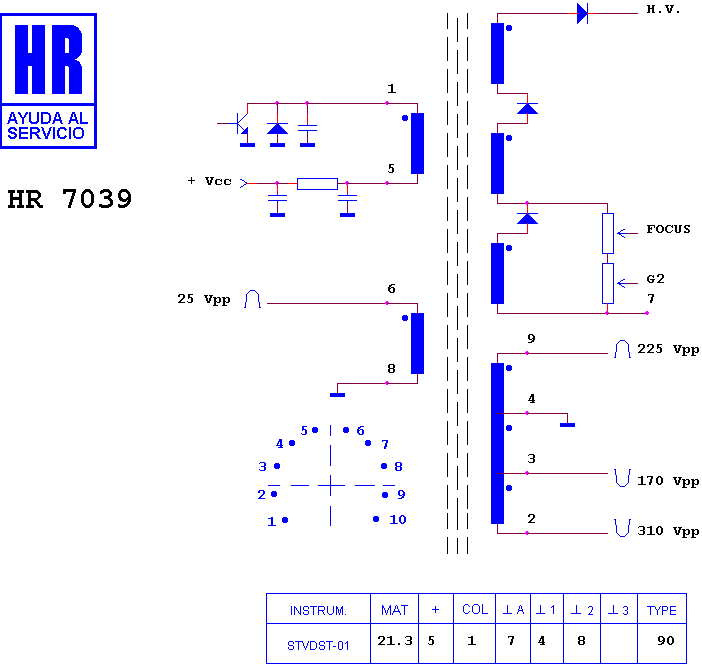

Schematic diagram for HR 7039
schematic

Manufacturer equivalents (12)

003301014 · 108 30380 · 1105.1397 · 1105.1397A · 3038.0 · 3038.00 · 3038.01 · 3130 108 30380 · 32320.00 · 4830 140 17017 · FAT30361 · KN30361

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7510 · HR 7184 · HR 8136 · HR 7170 · HR 7146 · HR 7418 · HR 6064 · HR 7964 · HR 7800 · HR 7113 · HR 6091 · HR 7143

Fitted to (9)

PHILIPS 14 CZ 3005/16 S · PHILIPS 16 CTZ 3015 · PHILIPS 17 CZ 3005/16 S · PHILIPS 20 CZ 3025 · PHILIPS 20 CZ 3025/16 · PHILIPS 20 CZ 3025/16 Z · PHILIPS CHASIS CTZ · RADIOLA 37 KZ 3050/16 S · RADIOLA 51 KZ 3250/16 Z
