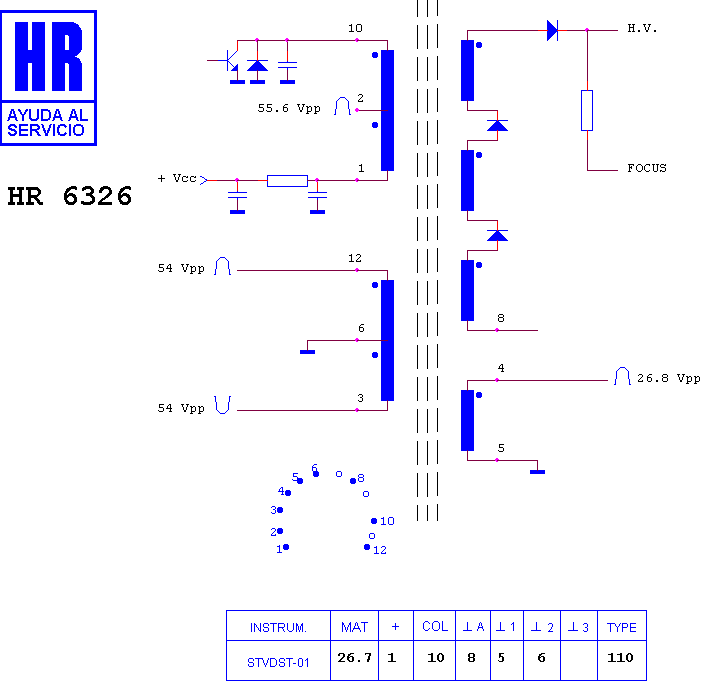

HR 6326

type ST · family 1QS · 26.7 kV maximum anode voltage · 110° deflection · 3 windings · 330 g

Manufacturer equivalents (1)

8 667 210 521

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6172 · HR 6033 · HR 7061 · HR 8873 · HR 7054 · HR 6044 · HR 6018 · HR 7072 · HR 7059 · HR 6037 · HR 6110 · HR 7036

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
