HR 8873

46.2 kV maximum anode voltage · 110° deflection · 5 windings · 400 g

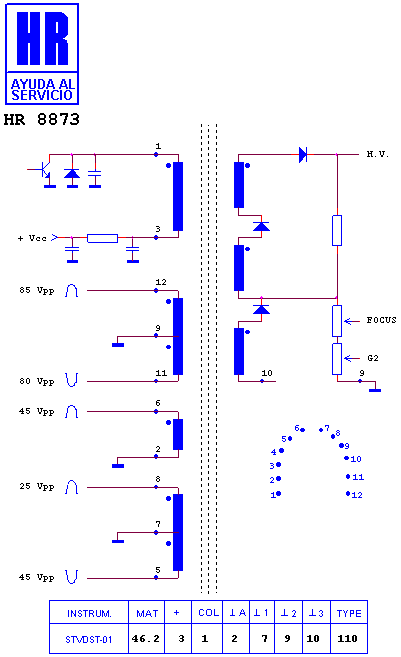

Schematic diagram for HR 8873
schematic (archived)

Manufacturer equivalents (6)

1372.0086 · 1372.00862 · 1372.0086A · 1372.0086C · 8014212 · HR 8873

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6326 · HR 6110 · HR 6172 · HR 6037 · HR 6033 · HR 6346
