HR 6172

type ST · family 1BP1 · 27 kV maximum anode voltage · 110° deflection · 3 windings · 356 g

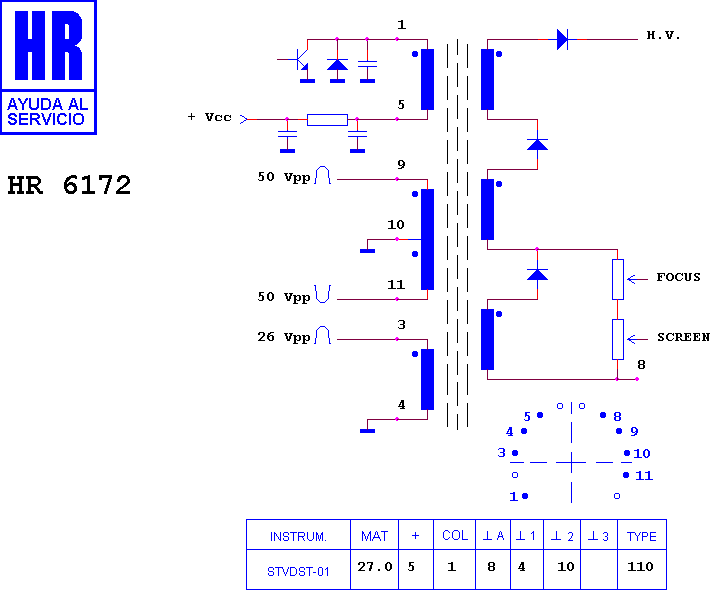

Schematic diagram for HR 6172
schematic

Manufacturer equivalents (1)

D 219/37

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7059 · HR 6033 · HR 8873 · HR 6326 · HR 6110 · HR 6037 · HR 6346

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
