HR 6110

type ST · family 1BP1 · 21.3 kV maximum anode voltage · 110° deflection · 2 windings · 356 g

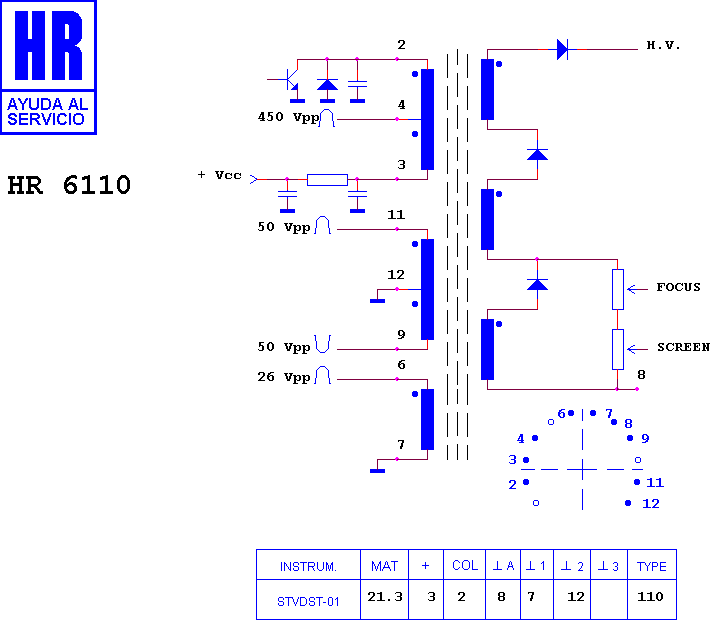

Schematic diagram for HR 6110
schematic

Manufacturer equivalents (2)

37338.00 · 37338.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6033 · HR 6326 · HR 6172 · HR 6037 · HR 8873 · HR 7059 · HR 6346

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
