HR 6346

type ST · family 1QP · 23.4 kV maximum anode voltage · 110° deflection · 4 windings · 366 g

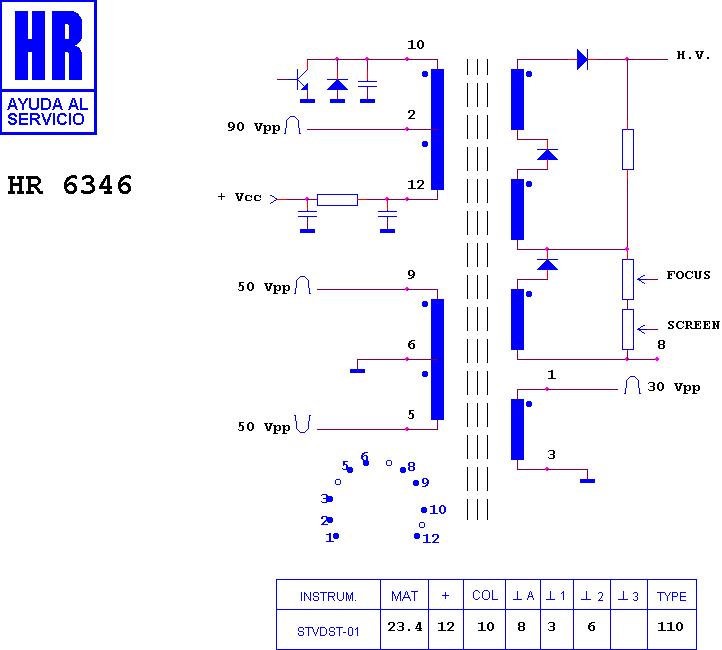

Schematic diagram for HR 6346
schematic

Manufacturer equivalents (1)

8 667 210 528 P 002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6316 · HR 6335 · HR 8873 · HR 6172 · HR 6118 · HR 6300 · HR 6110

Fitted to (2)

BLAUPUNKT 8022 · BLAUPUNKT 8088
