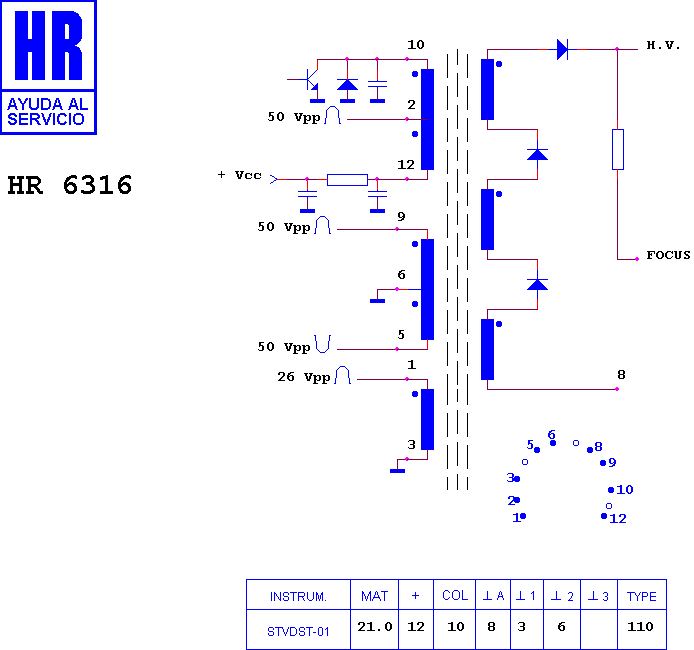

HR 6316

type ST · family 1QS · 21 kV maximum anode voltage · 110° deflection · 3 windings · 328 g

Manufacturer equivalents (8)

003220105 · 8 627 105 503 · 8 667 210 525 · FAT 3800 · KN 3800 · ME/6094-00 · RO 242 · TR 242

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6335 · HR 6300 · HR 6322 · HR 6118 · HR 6323 · HR 6346

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (4)

BLAUPUNKT 7 665 110 · BLAUPUNKT CHASIS FM 121 P · BLAUPUNKT VIRGINIA MP 45 · SIEMENS FF 5137

Search this part in the full database
