HR 6323

type ST · family 1JS · 18.9 kV maximum anode voltage · 110° deflection · 4 windings · 375 g

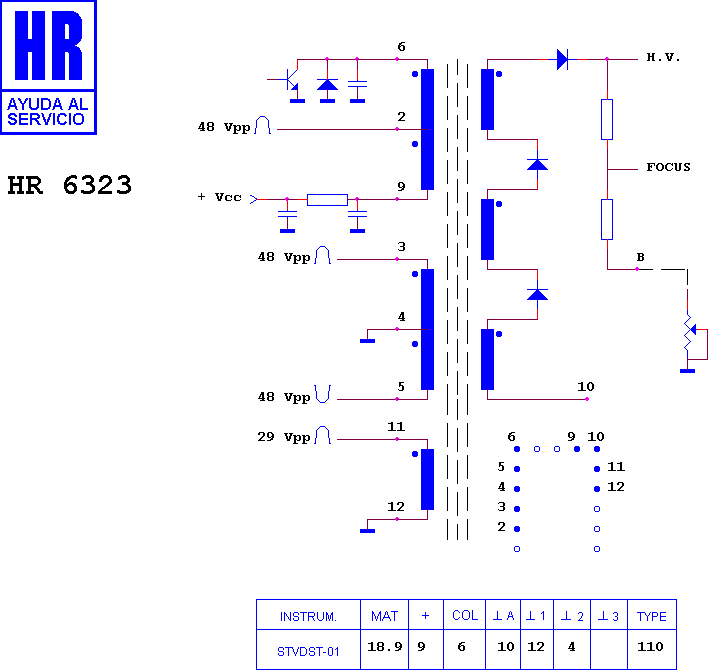

Schematic diagram for HR 6323
schematic

Manufacturer equivalents (11)

003050103 · 240120.4110 · 75 1593 · 8 627 105 493 · 8 667 210 403 · FAT3618 · HR 6323 · KN3618 · ME/5938-00 · RO 226 · TR 226

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6322 · HR 6300 · HR 6316 · HR 6335 · HR 6118

Fitted to (9)

BLAUPUNKT 7 661 040 · BLAUPUNKT 7 662 060 · BLAUPUNKT CHASIS FM 100.21 · BLAUPUNKT CHASIS FM 120 · BLAUPUNKT CHASIS FM 121 · BLAUPUNKT CHASIS FM 121 S · BLAUPUNKT RANCHO I 16 · BLAUPUNKT RODEO T 8 · SIEMENS CHASIS 100-21
