HR 6335

type ST · family 1QP · 21 kV maximum anode voltage · 110° deflection · 2 windings · 363 g

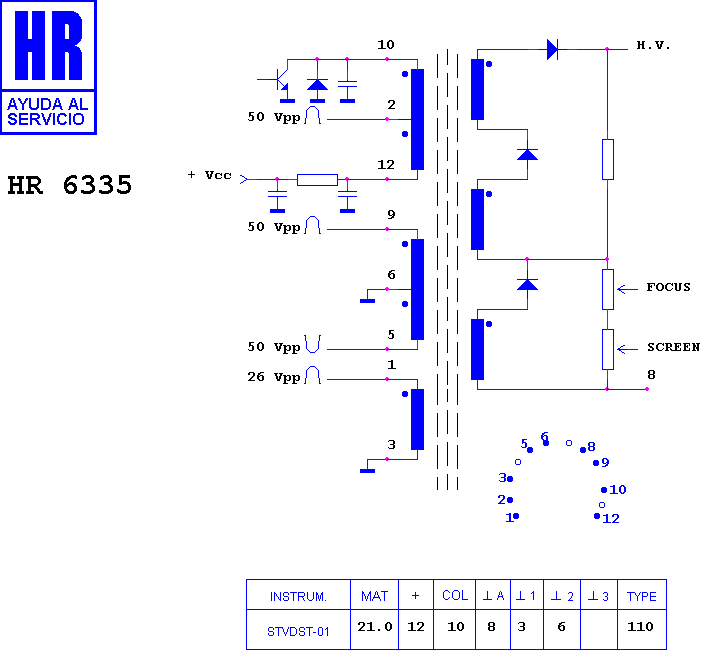

Schematic diagram for HR 6335
schematic

Manufacturer equivalents (1)

8 667 210 525 P 102

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6316 · HR 6346 · HR 6300 · HR 6322 · HR 6118 · HR 6323

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

BLAUPUNKT 7 665 110 · BLAUPUNKT 7 665 874 · BLAUPUNKT COLUMBIA SQ 25 · BLAUPUNKT COLUMBIA SQ 45 · BLAUPUNKT VIRGINIA MP 45
