HR 6037

type ST · family 1BP1 · 23.1 kV maximum anode voltage · 110° deflection · 3 windings · 356 g

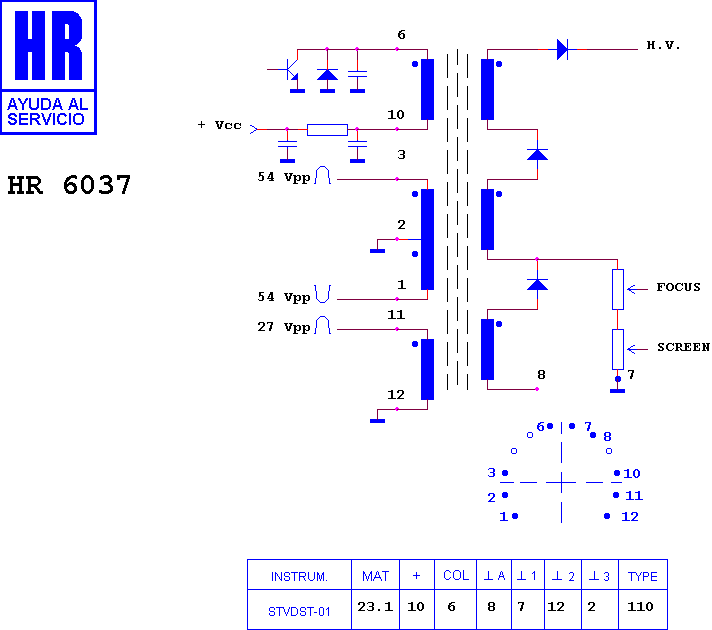

Schematic diagram for HR 6037
schematic

Manufacturer equivalents (2)

37017.00 · 37017.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7054 · HR 6044 · HR 6326 · HR 6033 · HR 7072 · HR 6172 · HR 8873 · HR 7059 · HR 7061 · HR 6018 · HR 6110 · HR 7036

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
