HR 7036

type ST · family 1NP1 · 21.6 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

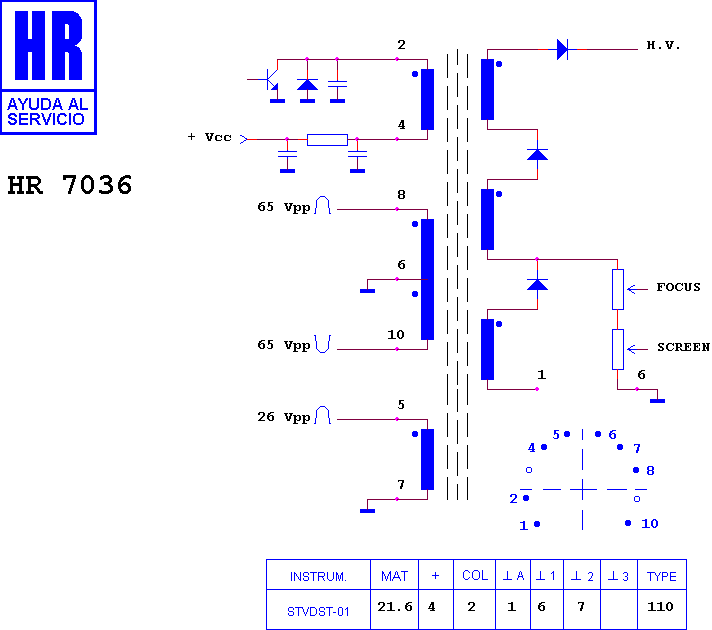

Schematic diagram for HR 7036
schematic

Manufacturer equivalents (1)

40 200 1016

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7054 · HR 6044 · HR 6326 · HR 7059 · HR 7061 · HR 7020 · HR 6018 · HR 7072 · HR 6037 · HR 6033

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
