HR 7020

type ST · family 1NP1 · 24.9 kV maximum anode voltage · 110° deflection · 4 windings · 280 g

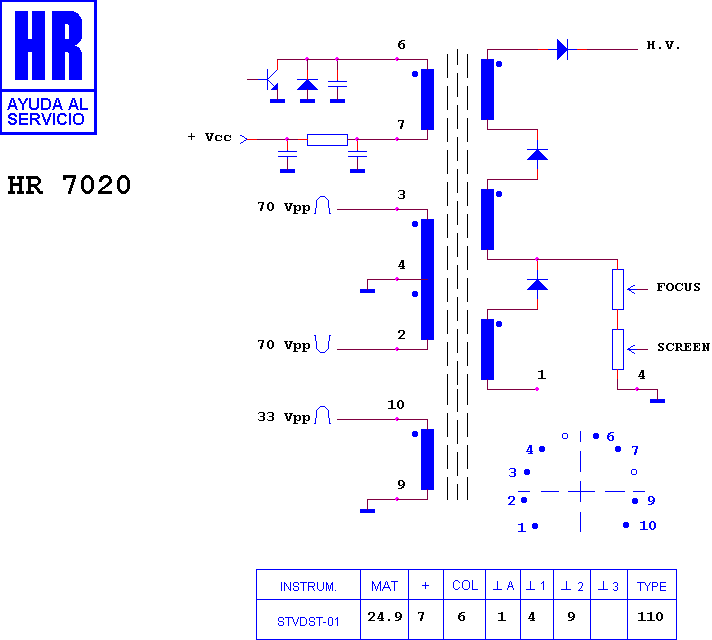

Schematic diagram for HR 7020
schematic

Manufacturer equivalents (6)

0.186 · 1105.0300 · 700402048 · 700402051 · TDS 108 · TDS 108 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7072 · HR 7054 · HR 7059 · HR 7061 · HR 6044 · HR 6018 · HR 7036 · HR 6304 · HR 6301

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
