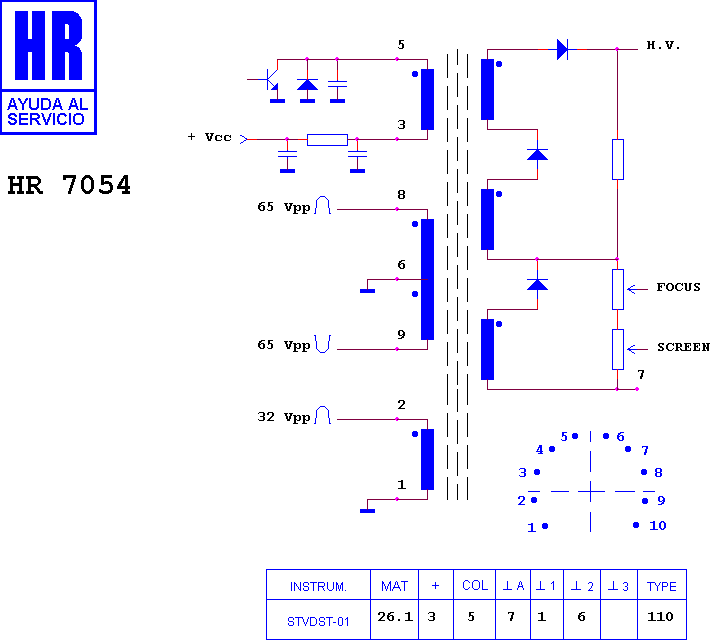

HR 7054

type ST · family 1AP2 · 26.1 kV maximum anode voltage · 110° deflection · 4 windings · 322 g

Manufacturer equivalents (7)

1105.0117 · 1105.0117 A · 13314801 · 946392 · HR 7054 · ME/5967-00 · TDS 111

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6326 · HR 7059 · HR 6033 · HR 7061 · HR 6044 · HR 6018 · HR 7020 · HR 7072 · HR 6037 · HR 7036

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (18)

EMERSON ARMONY · EMERSON HARMONY 21" · EMERSON HARMONY 25" · EMERSON HARMONY 28" · ULTRAVOX ARMONY 21" - 28" · ULTRAVOX CHASIS COLORE 99 C/SB · ULTRAVOX COSMOS 22" · ULTRAVOX COSMOS 27" · ULTRAVOX EXCELSIOR 22" · ULTRAVOX EXCELSIOR 27" · ULTRAVOX QUARK 22" · ULTRAVOX QUARK 27" · ULTRAVOX STEREO UX 24" · ULTRAVOX STEREO UX 28" · ULTRAVOX TVC 110§ 22" · ULTRAVOX TVC 110§ 27" · ULTRAVOX UX 24" · ULTRAVOX UX 28"
