HR 7061

type ST · family 1AP2 · 27 kV maximum anode voltage · 110° deflection · 3 windings · 318 g

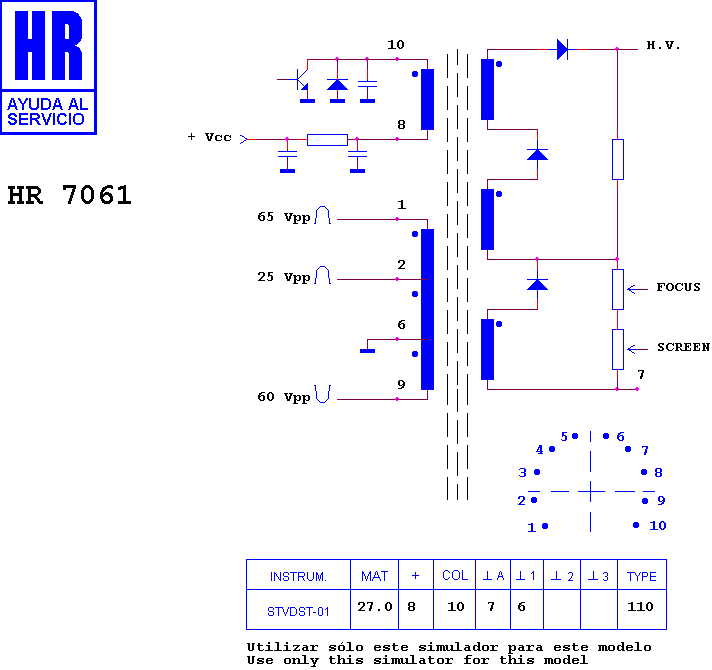

Schematic diagram for HR 7061
schematic

Manufacturer equivalents (3)

1105.0297 · 8719131000 · TDS 129

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6033 · HR 7054 · HR 6044 · HR 6326 · HR 7036 · HR 7059 · HR 7020 · HR 6018 · HR 7072 · HR 6037

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

TELEA MARELLI 14" · TELEA MARELLI 1416 · TELEA MARELLI 16" · TELEA MARELLI 20" · TELEA MARELLI MONITOR
