HR 6304

type ST · family 1MP · 17.7 kV maximum anode voltage · 110° deflection · 2 windings · 392 g

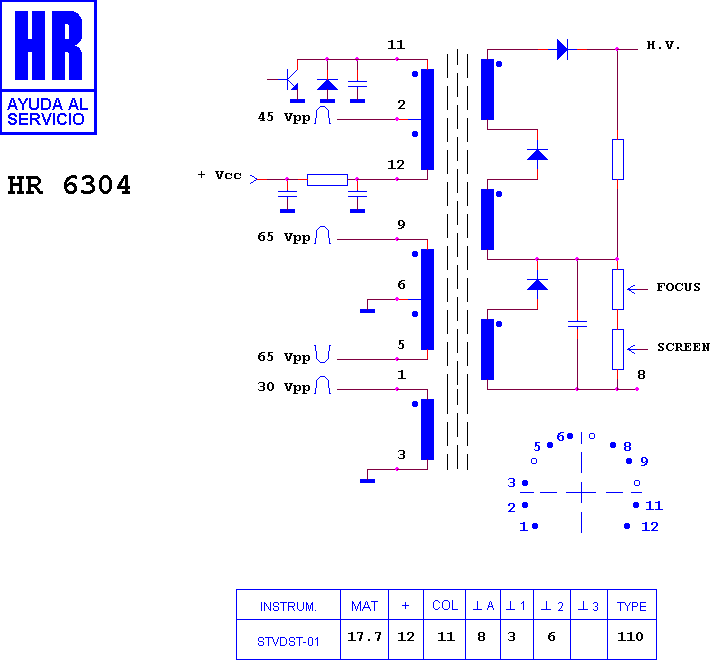

Schematic diagram for HR 6304
schematic

Manufacturer equivalents (9)

003011110 · 240120.4091 · 75 2682 · 752681 · 8 627 105 498 · 8 667 210 473 · FAT3795 · MAT33446 · ME/6089-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6301 · HR 6300 · HR 8250 · HR 6309 · HR 6334 · HR 6345 · HR 6037 · HR 6033 · HR 6018 · HR 7072 · HR 7020

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
