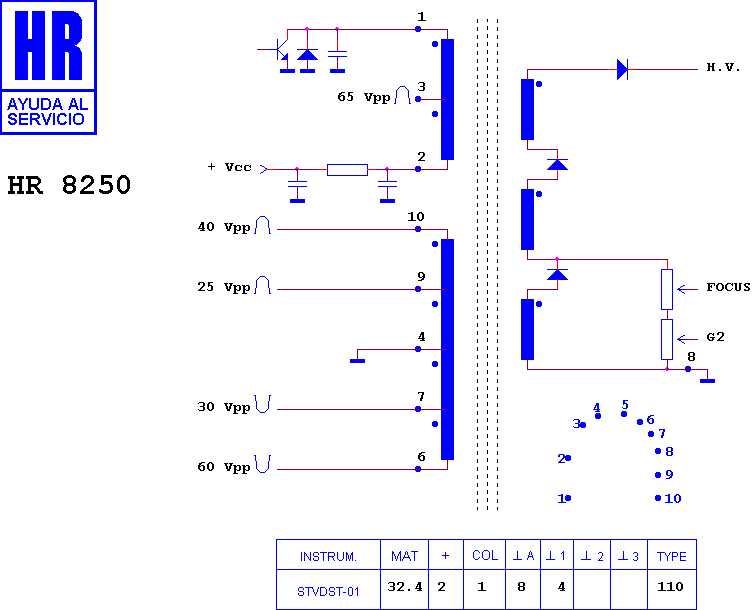

HR 8250

type ST · family 1XP1 · 32.4 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

TFB 4126 AP

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6309 · HR 6334 · HR 6345 · HR 6304 · HR 6301

Search this part in the full database
