HR 6345

type ST · family 1QP · 20.4 kV maximum anode voltage · 110° deflection · 2 windings · 362 g

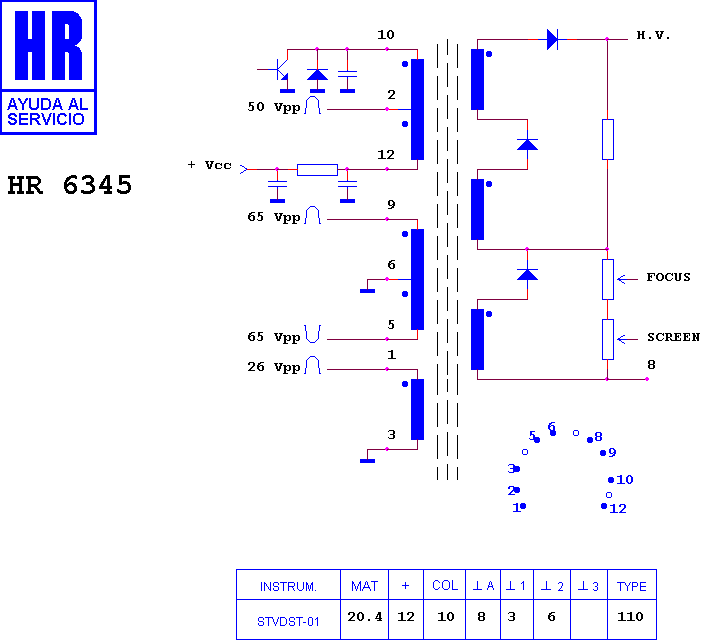

Schematic diagram for HR 6345
schematic

Manufacturer equivalents (1)

8 667 210 525 P 002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6309 · HR 6334 · HR 8250 · HR 6037 · HR 6033 · HR 6018 · HR 7072 · HR 6304 · HR 6301

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

BLAUPUNKT 7 665 110 · BLAUPUNKT 7 665 874 · BLAUPUNKT COLUMBIA SQ 25 · BLAUPUNKT VIRGINIA MP 45

Search this part in the full database
