HR 6334

type ST · family 1QP · 19.2 kV maximum anode voltage · 110° deflection · 2 windings · 364 g

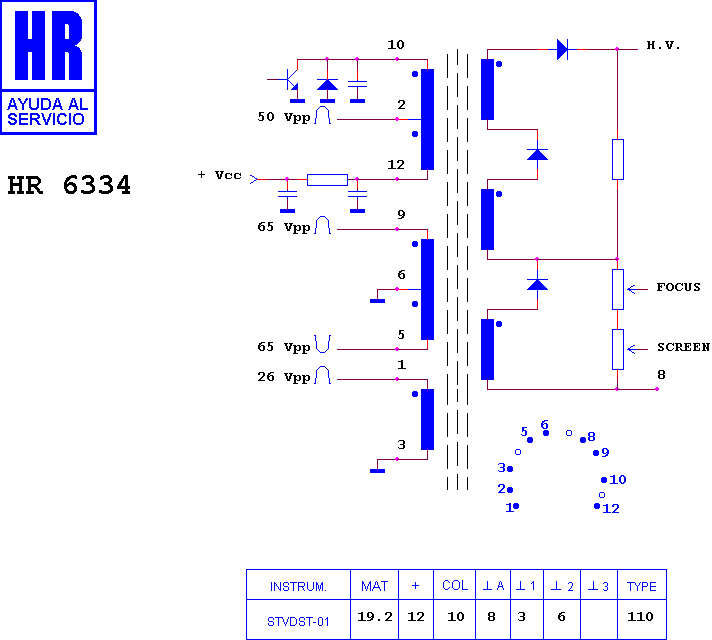

Schematic diagram for HR 6334
schematic

Manufacturer equivalents (5)

210524 P 102 · 75 3588/730733 · 8 667 210 524 P 102 · 8 667 210 524/730 · 8667 210 524/730733

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6309 · HR 6345 · HR 8250 · HR 6037 · HR 6033 · HR 6018 · HR 7072 · HR 6304 · HR 6301

Fitted to (15)

BLAUPUNKT 210524 P 102 · BLAUPUNKT 7 665 000 · BLAUPUNKT 7 665 010 · BLAUPUNKT 7 665 014 · BLAUPUNKT 7 665 040 · BLAUPUNKT 7 665 050 · BLAUPUNKT 7 665 054 · BLAUPUNKT 7 665 111 · BLAUPUNKT 7 665 114 · BLAUPUNKT 8667 210 524 P 102 · BLAUPUNKT RANCHO MP 45 · BLAUPUNKT RODEO MP 45 · BLAUPUNKT SCOUT MT 35 · BLAUPUNKT SKIPPER MT 35 · BLAUPUNKT VIRGINIA MP 45
