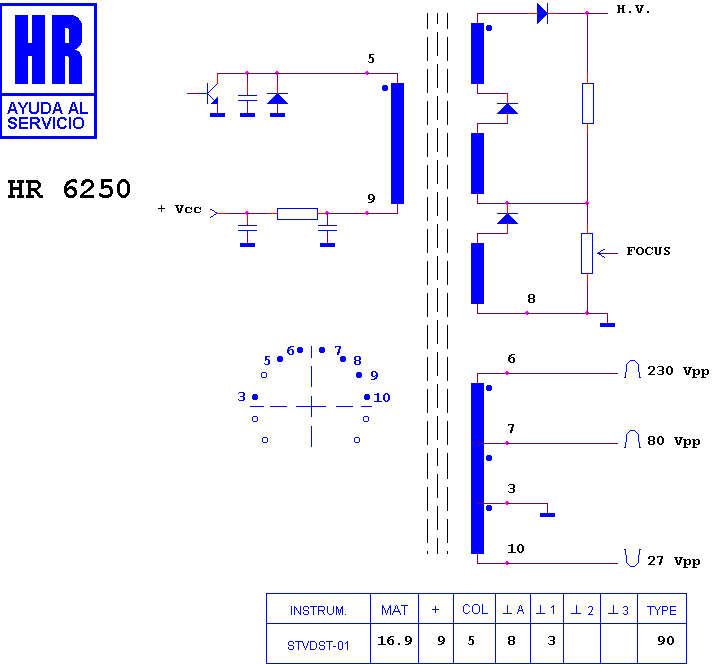

HR 6250

type ST · family 1BP1 · 16.9 kV maximum anode voltage · 90° deflection · 3 windings · 425 g

Manufacturer equivalents (7)

003041101 · 005848 · 240120.4027 · 5530-6330 · RO 036 · RO 36 · TR 036

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7502 · HR 8920 · HR 7492 · HR 7355 · HR 8276 · HR 8785 · HR 8428 · HR 8190 · HR 7238 · HR 7514 · HR 7986 · HR 80023

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

MATSUI CHASIS 11 AK 02 · MULTIVISION CHASIS 11 AK 02 · MULTIVISION DIGITAL 90 · VESTEL CHASIS 11 AK 02 · VESTEL DIGITAL 90
