HR 6111

type ST · family 1BP1 · 17.1 kV maximum anode voltage · 90° deflection · 4 windings · 360 g

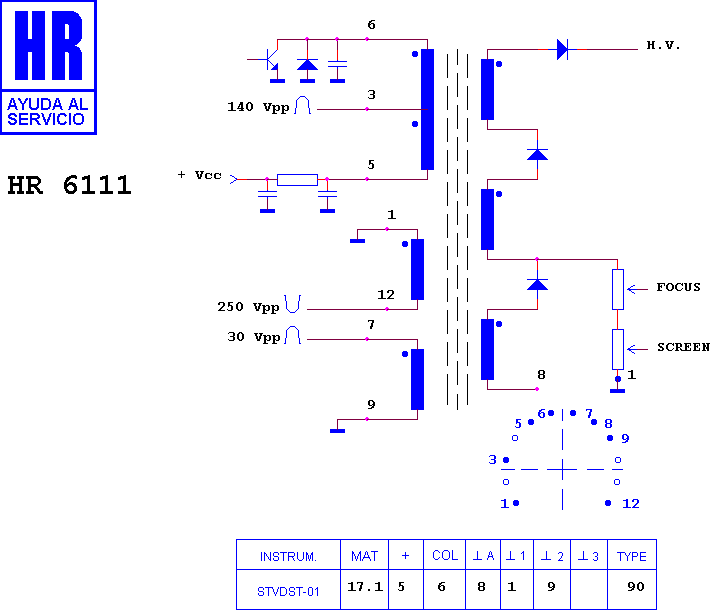

Schematic diagram for HR 6111
schematic

Manufacturer equivalents (3)

37023.00 · 37023.01 · 37323.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8760 · HR 8715 · HR 8899 · HR 6571 · HR 7412 · HR 8188 · HR 7998 · HR 8451 · HR 6006 · HR 8536 · HR 8691 · HR 7947

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
