HR 8249

type ST · family 1AP1 · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

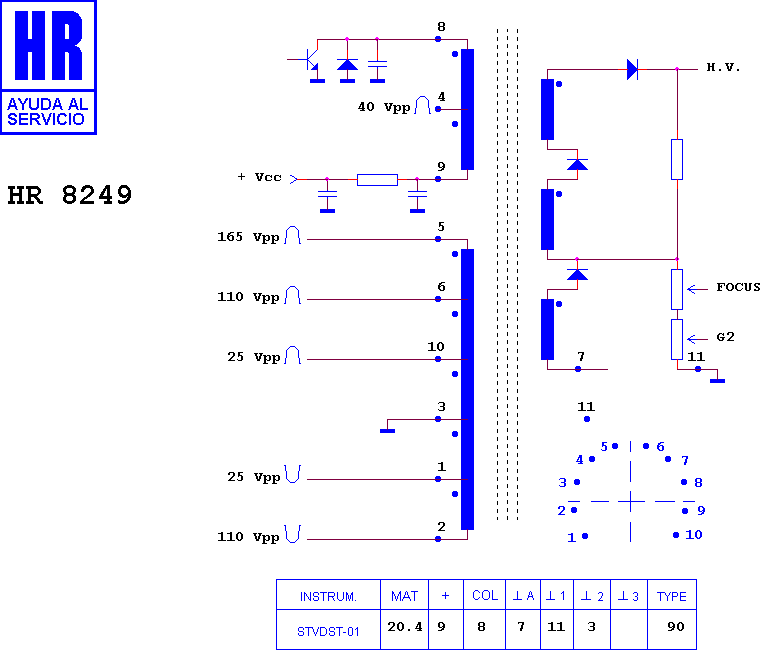

Schematic diagram for HR 8249
schematic

Manufacturer equivalents (2)

F 2083 BM · RTRNF2083BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7645 · HR 8303 · HR 7765 · HR 7734 · HR 7197 · HR 6407 · HR 6408 · HR 6221 · HR 6222 · HR 7796 · HR 7685 · HR 7268

Fitted to (1)

SHARP CHASIS CA 10
