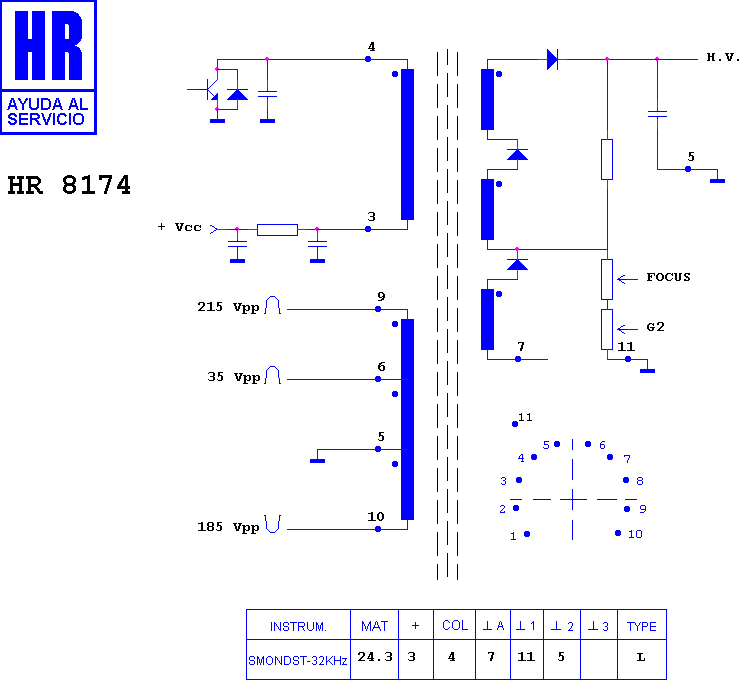

HR 8174

type SM · family 1ACP · 24.3 kV maximum anode voltage · L° deflection · 3 windings · 434 g

Manufacturer equivalents (1)

HR 8174

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6609 · HR 6606 · HR 7643 · HR 46170 · HR 6600 · HR 7842 · HR 46179 · HR 8219 · HR 6580 · HR 7252 · HR 7255 · HR 7246

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.
