HR 7246

type SM · family 1VCP · 25.6 kV maximum anode voltage · L° deflection · 3 windings · 393 g

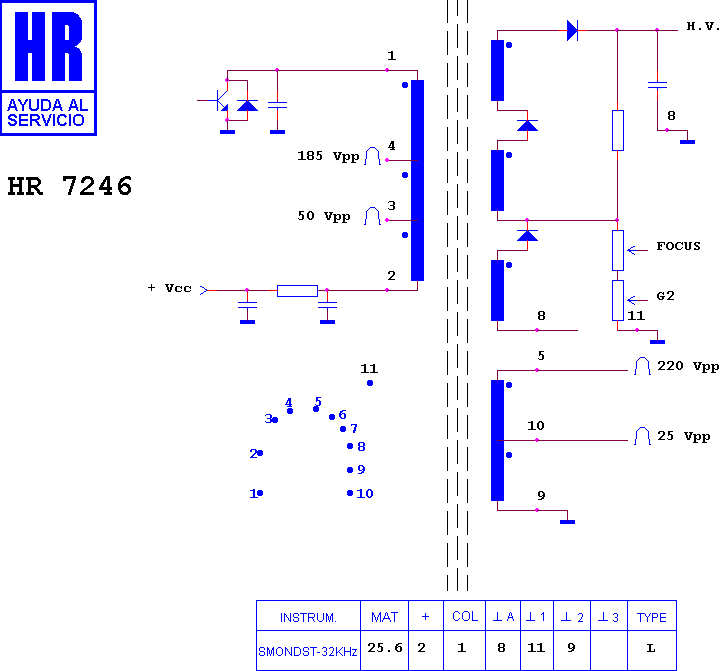

Schematic diagram for HR 7246
schematic

Manufacturer equivalents (8)

FCO 2030 BE · KFS 60832 · MAT33404 · MAT33460 · ME/0334-04 · ME/0334-60 · TLF 70113 E · TLF70113B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8248 · HR 46179 · HR 46170 · HR 6609 · HR 6600 · HR 8174

Fitted to (5)

IBM 8512 · IBM 8512-002 · IBM 8512002 · IBM 8513 · IBM MONITOR
