HR 7255

type SM · family 1VCP · 25.2 kV maximum anode voltage · L° deflection · 3 windings · 389 g

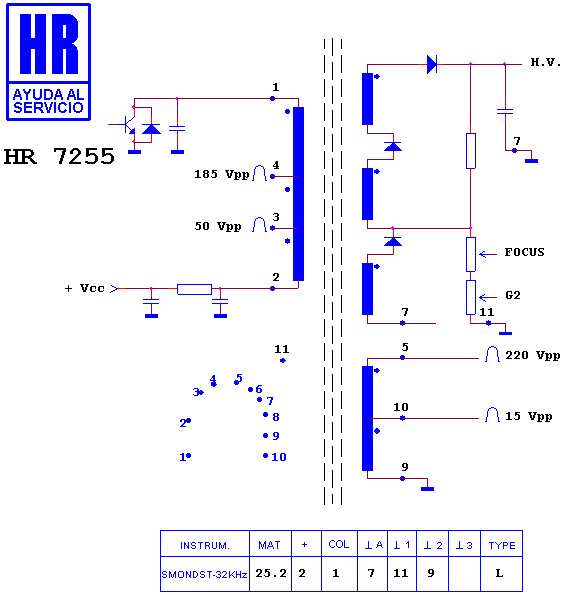

Schematic diagram for HR 7255
schematic

Manufacturer equivalents (6)

DNF-FL 2713 · FCO 1412 E 10 · FL 2713 · MAT33435 · ME/0334-35 · TL 2713

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46187 · HR 7252 · HR 6609 · HR 7849 · HR 46175 · HR 6600 · HR 8174 · HR 6606 · HR 6658 · HR 8219
