HR 7252

type SM · family 1VCP · 24.4 kV maximum anode voltage · L° deflection · 3 windings · 389 g

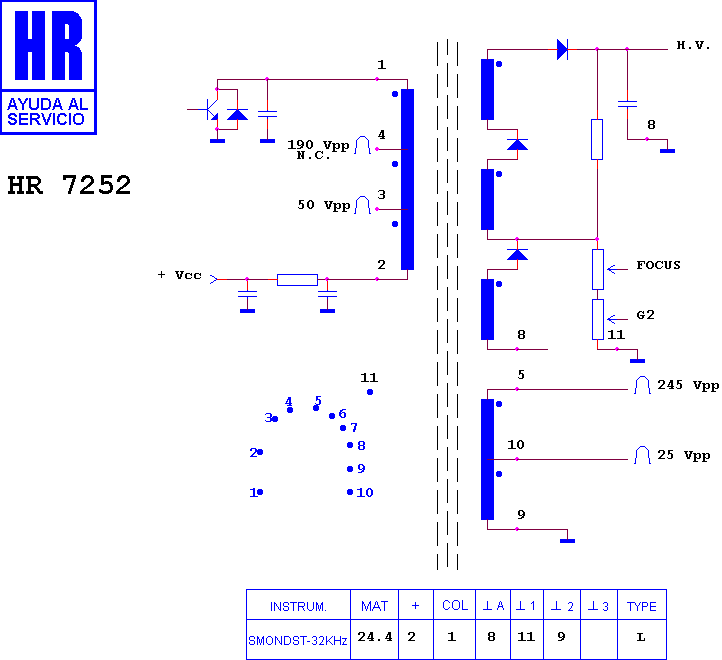

Schematic diagram for HR 7252
schematic

Manufacturer equivalents (5)

FCO 1412 E 08 · FCO 1414 E 08 · FL 2705 · MAT33405 · ME/0334-05

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7255 · HR 46187 · HR 6606 · HR 8174 · HR 8219

Fitted to (9)

DEC MONITOR · DEC VC 2 · IBM 8512 · IBM 8513 · IBM 8513-002 · IBM 8513002 · IBM 8523 · IBM 8555 · IBM MONITOR

Search this part in the full database
