HR 7849

type SM · family 1WP1 · 26 kV maximum anode voltage · L° deflection · 3 windings · 444 g

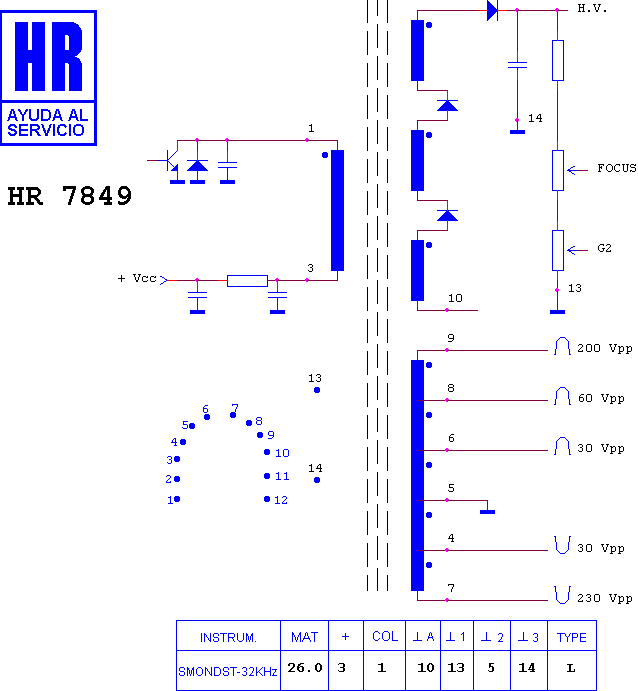

Schematic diagram for HR 7849
schematic

Manufacturer equivalents (3)

32054087 · 33000310 · JT 164

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7956 · HR 7844 · HR 46187 · HR 7255 · HR 6658 · HR 46233

Search this part in the full database
