HR 7844

type SM · family 1YP · 26.3 kV maximum anode voltage · L° deflection · 3 windings · 390 g

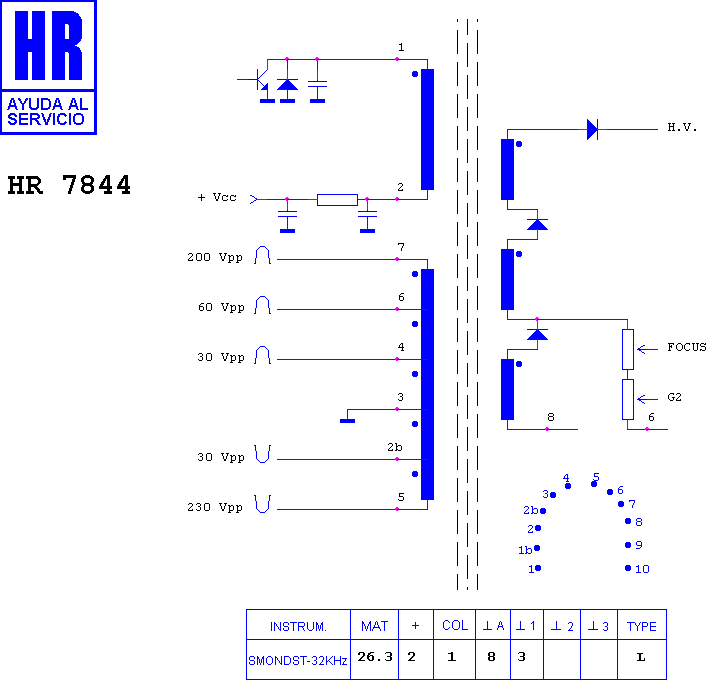

Schematic diagram for HR 7844
schematic

Manufacturer equivalents (1)

1302.0010

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46187 · HR 7849 · HR 7956 · HR 46233

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

ALBIRAL-ALBICOLOR 25 MV 500 · ALBIRAL-ALBICOLOR 28 MV 500 · ALBIRAL-ALBICOLOR MONITOR
