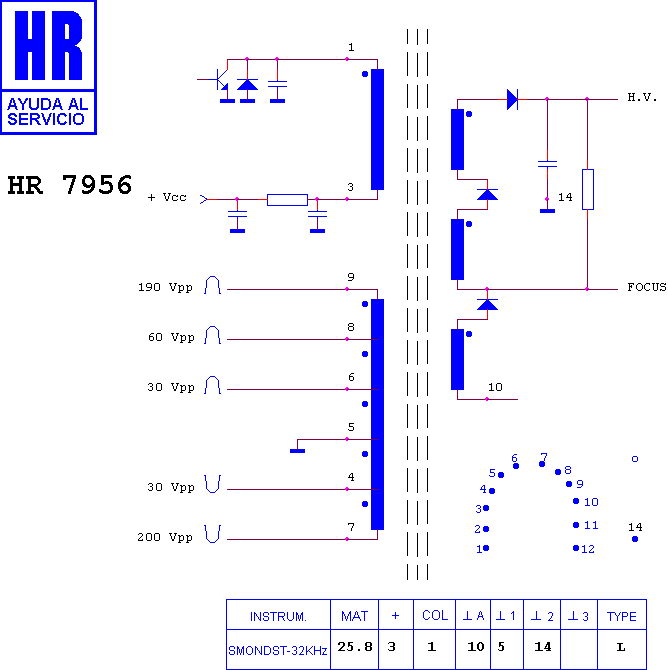

HR 7956

type SM · family 1WP1 · 25.8 kV maximum anode voltage · L° deflection · 3 windings · 474 g

Manufacturer equivalents (1)

HR 7956-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7849 · HR 7844 · HR 46187 · HR 6601 · HR 46233

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Fitted to (1)

ALBIRAL-ALBICOLOR CHASIS 16:9

Search this part in the full database
