HR 7447

type ST · family 1XP1 · 27.6 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

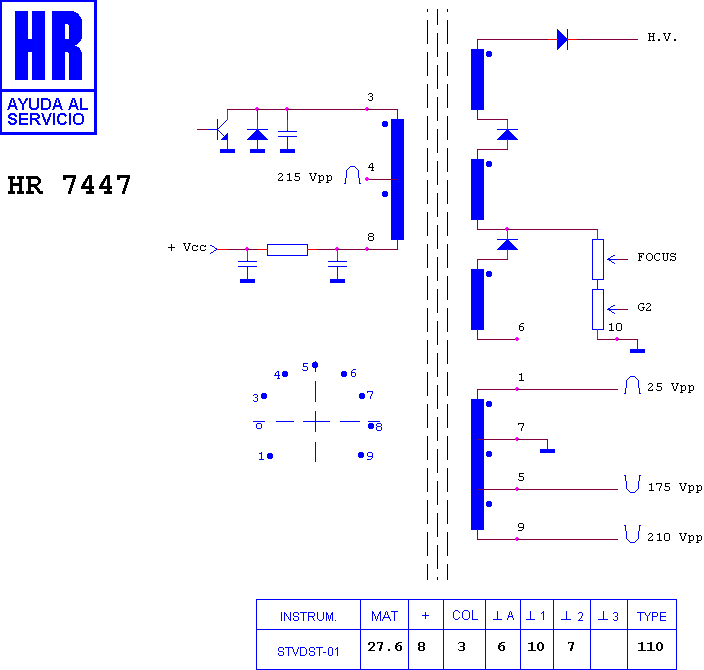

Schematic diagram for HR 7447
schematic

Manufacturer equivalents (3)

TLF 14801 F · TLF 14801 F1 · TLF14801

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8933 · HR 8501 · HR 80096 · HR 8686 · HR 8398 · HR 7374 · HR 80032 · HR 6574 · HR 8902 · HR 7870 · HR 8685 · HR 7114

Fitted to (3)

PANASONIC - MATSUSHITA CTG 1000 · PANASONIC - MATSUSHITA CTG 1016 · PANASONIC - MATSUSHITA CTJ 1000
