HR 7180

type ST · family 1AP1 · 34.2 kV maximum anode voltage · 110° deflection · 4 windings · 372 g

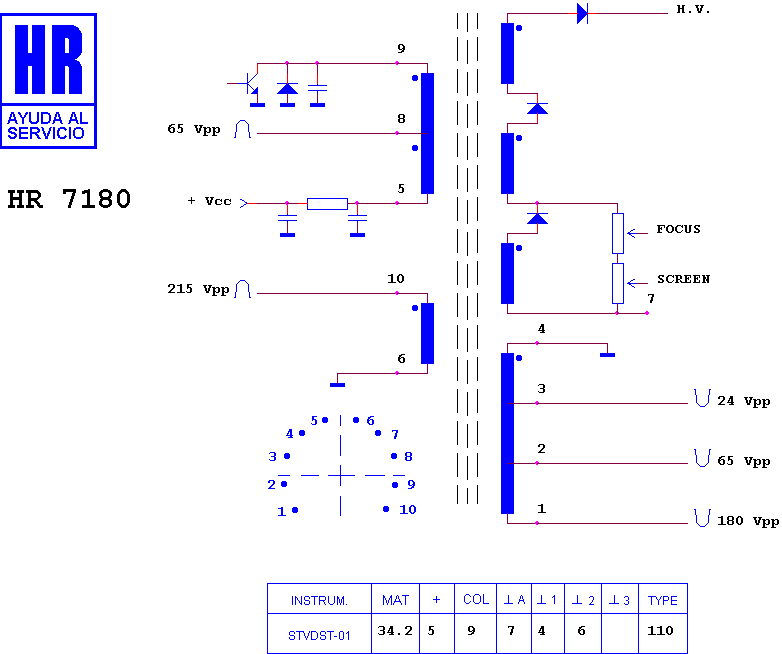

Schematic diagram for HR 7180
schematic

Manufacturer equivalents (5)

003301018 · 32018.00 · 473063.00 · FAT30198 · TR1173

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6554 · HR 8323 · HR 6592 · HR 7090 · HR 7187 · HR 6120 · HR 6352 · HR 6183 · HR 7993 · HR 8705 · HR 8770 · HR 7100

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TELEFUNKEN MRX 25
