HR 7100

type ST · family 1AS · 19.2 kV maximum anode voltage · 110° deflection · 3 windings · 305 g

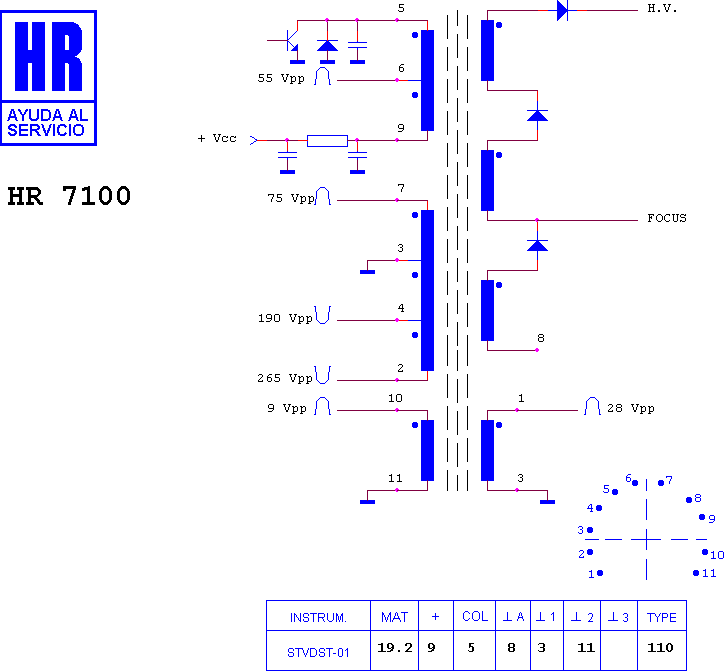

Schematic diagram for HR 7100
schematic

Manufacturer equivalents (3)

2433211 · 2433211H · 4515 03 02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6352 · HR 6120 · HR 7993 · HR 6554 · HR 6532 · HR 6177 · HR 6245 · HR 6545 · HR 6681 · HR 6121 · HR 6069 · HR 7187

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

NOKIA - ITT 3104 · NOKIA - ITT 3226 · NOKIA - ITT IDEAL COLOR · WESTON 14 90
