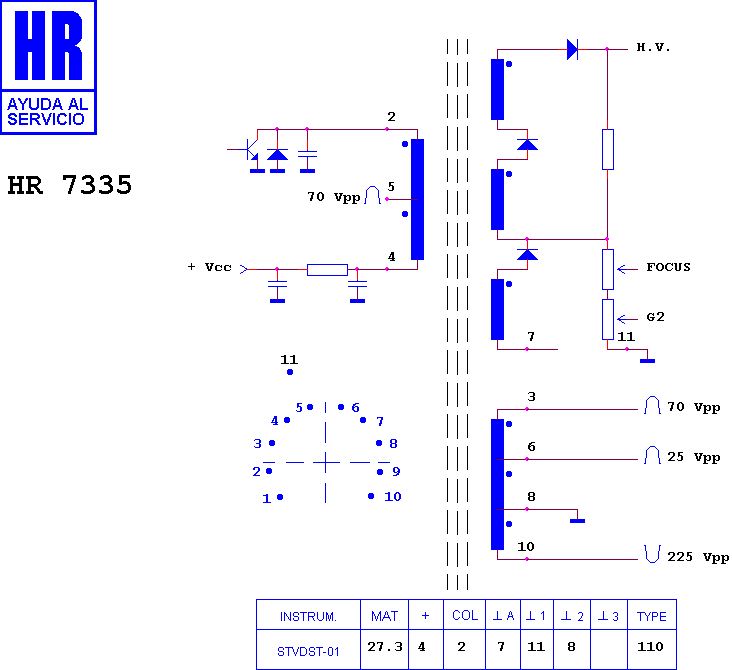

HR 7335

type ST · family 1AP1 · 27.3 kV maximum anode voltage · 110° deflection · 3 windings · 338 g

Manufacturer equivalents (8)

1192.0412 · 1192.0417 · 1192.0587 · 1362.3034 · 700402098 · 8700402098 · 88700402098 · FAT 30511

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7187 · HR 7090 · HR 7296 · HR 7297 · HR 7250 · HR 6369 · HR 6592 · HR 8324 · HR 6554 · HR 8658 · HR 8222 · HR 6681

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control
• HR 16525 — Screen (G2) control

Fitted to (11)

DESMET CHASIS F 11 · EMERSON 9172-19 · EMERSON TS 9125 B · EMERSON TS 9128 B · FORMENTI - ADMIRAL CHASIS F 9-01 · FORMENTI - ADMIRAL HANNOVER 29" · MANESTH 7105 STE · MANESTH MC 7105 STE · UNITED CHASIS F 11 · UNITED UTV 2510 · WESTINGHOUSE CHASIS F 11
