HR 6188

type ST · family 1BP1 · 21.1 kV maximum anode voltage · 90° deflection · 4 windings · 424 g

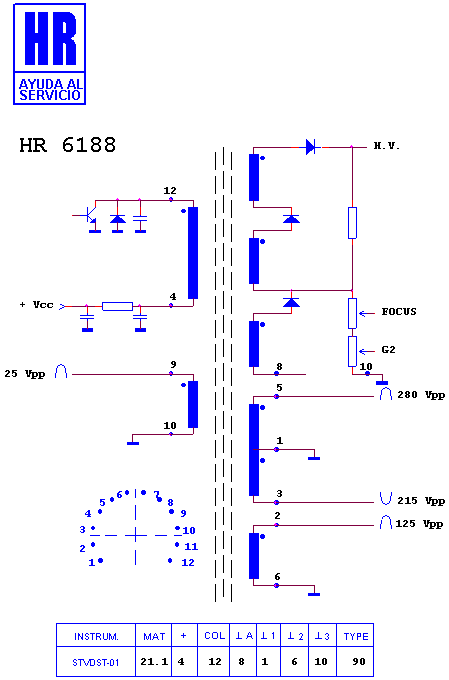

Schematic diagram for HR 6188
schematic

Manufacturer equivalents (3)

03738399 · 37383.00 · 37383.99

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6279 · HR 8378 · HR 7508 · HR 7509 · HR 8064 · HR 7560 · HR 7159 · HR 8661 · HR 7941 · HR 7914 · HR 6588 · HR 80292
