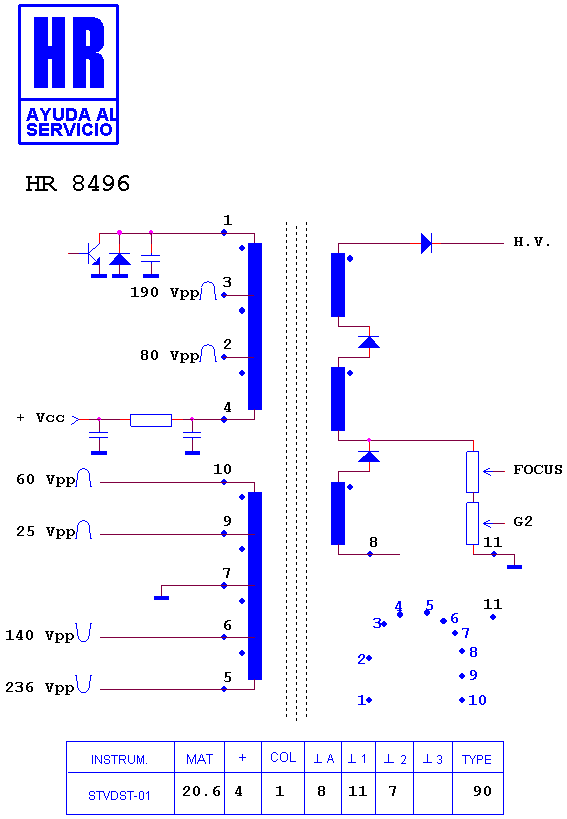

HR 8496

type ST · family 1XP1 · 20.6 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

Manufacturer equivalents (1)

154 064 G

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7727 · HR 6049 · HR 7124 · HR 7118 · HR 7055 · HR 8693 · HR 7006

Fitted to (12)

LG - GOLDSTAR CHASIS NC 12 J · LG - GOLDSTAR CN 14 A 31 · LG - GOLDSTAR CN 14 A 33 · LG - GOLDSTAR CN 14 A 41 G · LG - GOLDSTAR CN 14 A 43 G · LG - GOLDSTAR CN 14 B 31 · LG - GOLDSTAR CN 14 B 33 · LG - GOLDSTAR CN 14 B 41 G · LG - GOLDSTAR CN 14 B 43 G · LG - GOLDSTAR CY 14 A 62 J · LG - GOLDSTAR CY 14 F 20 · LG - GOLDSTAR NC 95 H 16

Search this part in the full database
