HR 6049

type ST · family 1BP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 358 g

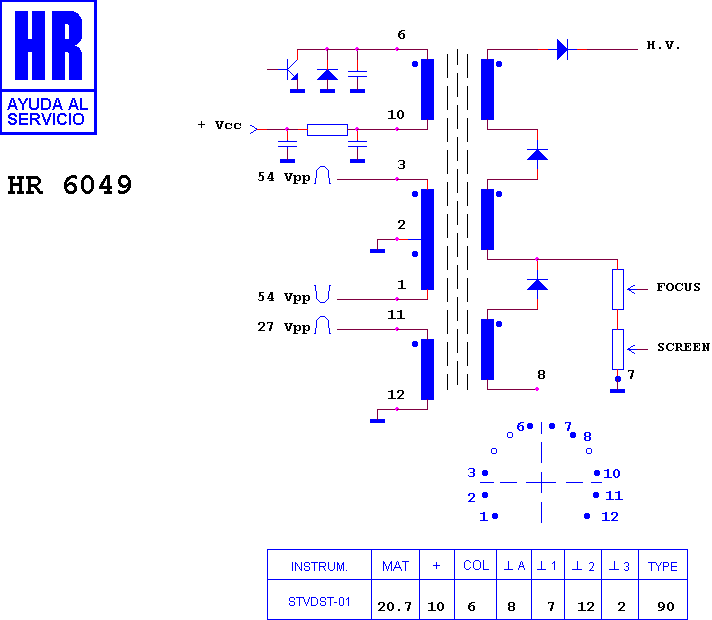

Schematic diagram for HR 6049
schematic

Manufacturer equivalents (6)

37037.00 · 37037.01 · 37337.00 · 37337.01 · 37337.02 · HR 6049

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7124 · HR 7118 · HR 7006 · HR 7055 · HR 8496 · HR 8693

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
