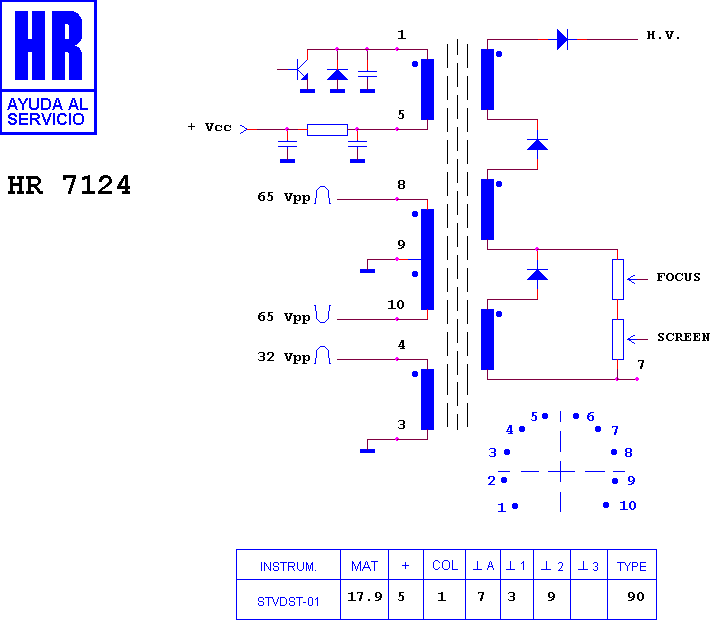

HR 7124

type ST · family 1NP1 · 17.9 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (2)

2433102 · FAT 3975

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6049 · HR 7539 · HR 8496 · HR 7118 · HR 7006 · HR 7055 · HR 8693

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

TELEFUNKEN 366 M · TELEFUNKEN 511 · TELEFUNKEN 671 · TELEFUNKEN 716
