HR 7118

type ST · family 1NP1 · 17.8 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

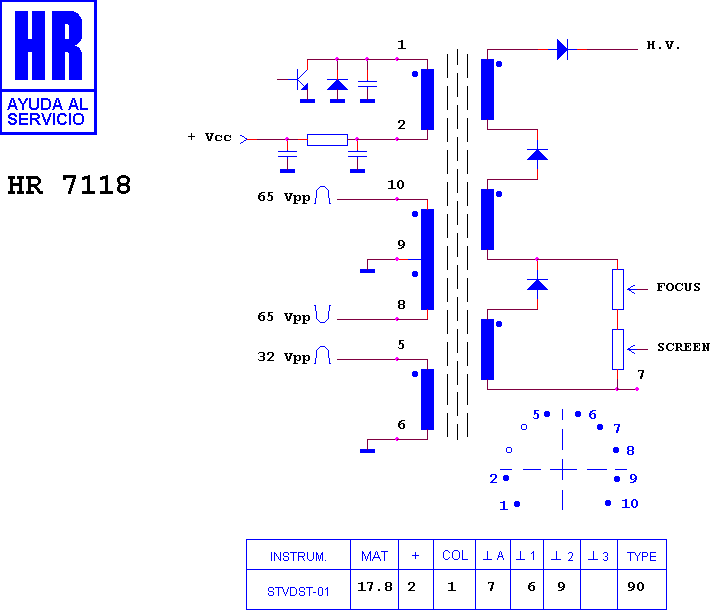

Schematic diagram for HR 7118
schematic

Manufacturer equivalents (1)

HR 7118

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7006 · HR 8693 · HR 7124 · HR 8496 · HR 6049 · HR 7539 · HR 7055

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
