HR 8050

type ST · family 1AP2 · 17.5 kV maximum anode voltage · 90° deflection · 4 windings · 322 g

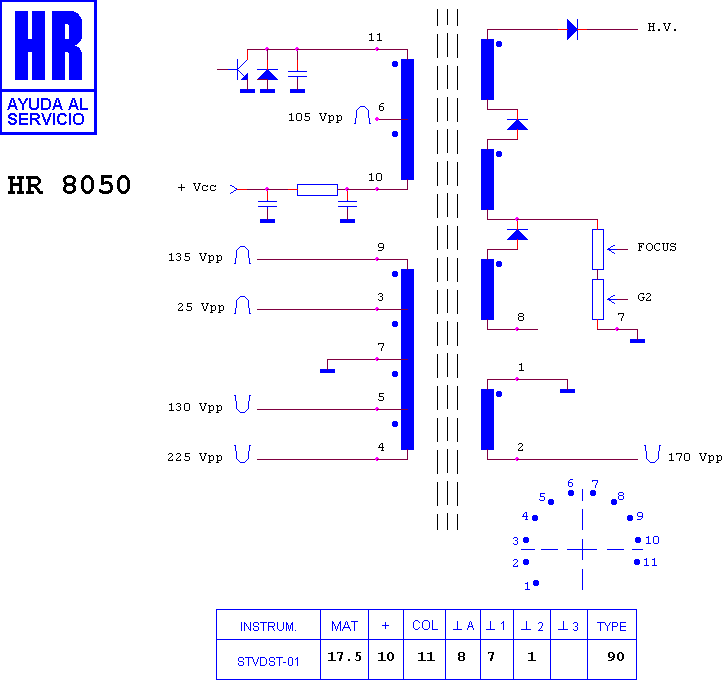

Schematic diagram for HR 8050
schematic

Manufacturer equivalents (6)

002 651 0337 · 26510337 · F 1414 CE · FAT3858 · ME/6148-00 · RTRNF1414CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7654 · HR 7958 · HR 5741 · HR 7888 · HR 7199 · HR 7887 · HR 7787 · HR 7204 · HR 6032 · HR 7763 · HR 7748 · HR 7618

Fitted to (1)

SHARP 14 CB 14 F
