HR 7323

type ST · family 1OS1 · 18.9 kV maximum anode voltage · 90° deflection · 6 windings · 297 g

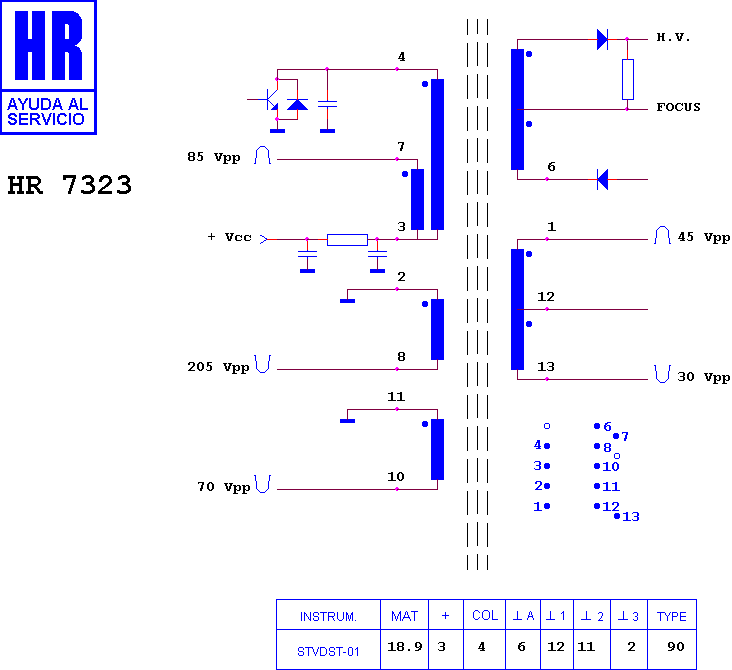

Schematic diagram for HR 7323
schematic

Manufacturer equivalents (18)

0-2223-076 · 0-2223-083 · 003350106 · 2223076 · 2223083 · 40317-14 · 473028.00 · 534 TX 0263 · 534 TX 0277 · AT 90/25/21 · FAT30074 · HR 7323 · KN30074 · KN35307N · ME/6447-00 · RO 089 · TR 430 · TR1041

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7789 · HR 7291 · HR 8120 · HR 7883 · HR 8710 · HR 8266 · HR 8268 · HR 7148 · HR 7882 · HR 7532 · HR 7667 · HR 6308

Fitted to (10)

TELEAVIA 0004 121 · VIDEOTON TS 3350 · VIDEOTON TS 3351 · VIDEOTON TS 3353 · VIDEOTON TS 3354 · WALTHAM TS 3350 · WALTHAM TS 3354 · WALTHAM TS 3354-434 · WALTHAM WT 655 · WALTHAM WT 655-434
