HR 7287

type ST · family 1AP1 · 20.4 kV maximum anode voltage · 90° deflection · 4 windings · 330 g

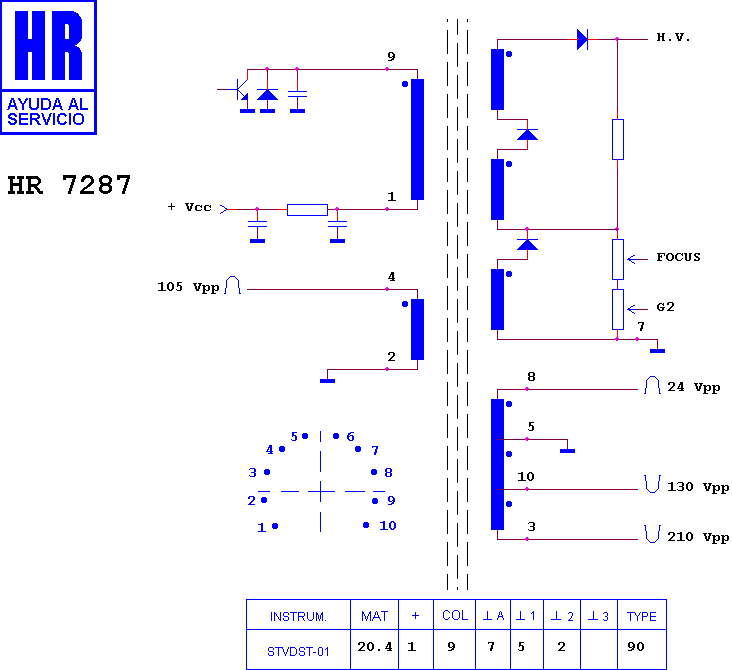

Schematic diagram for HR 7287
schematic

Manufacturer equivalents (10)

003311122 · 4470034 · 4515 05 13 · FAT30264 · HR 7287 · KN30264 · M 12-19 · PET32-C4 · RO 421 · TR 421

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7405 · HR 7404 · HR 7737 · HR 7535 · HR 8170 · HR 8442 · HR 7777 · HR 7188 · HR 8111 · HR 7825 · HR 8774 · HR 8109

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

ENIE ENIVISION 55

Search this part in the full database
