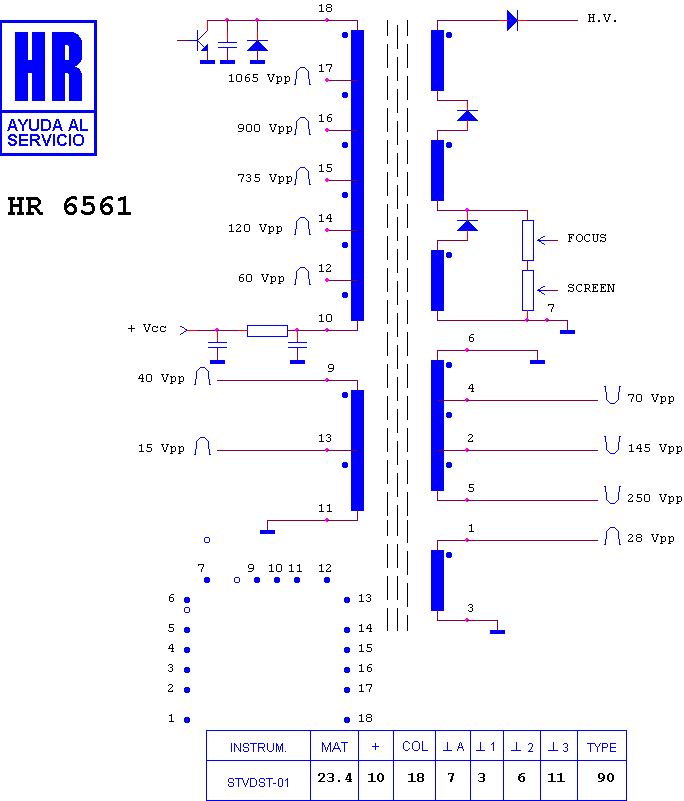

HR 6561

type ST · family 1IP · 23.4 kV maximum anode voltage · 90° deflection · 4 windings · 436 g

Manufacturer equivalents (1)

HR 6561-01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6155 · HR 6283 · HR 8275 · HR 8194 · HR 6407 · HR 6408 · HR 8412 · HR 6396 · HR 7391 · HR 7481 · HR 7416

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
