HR 8488

21 kV maximum anode voltage · 90° deflection · 4 windings · 248 g

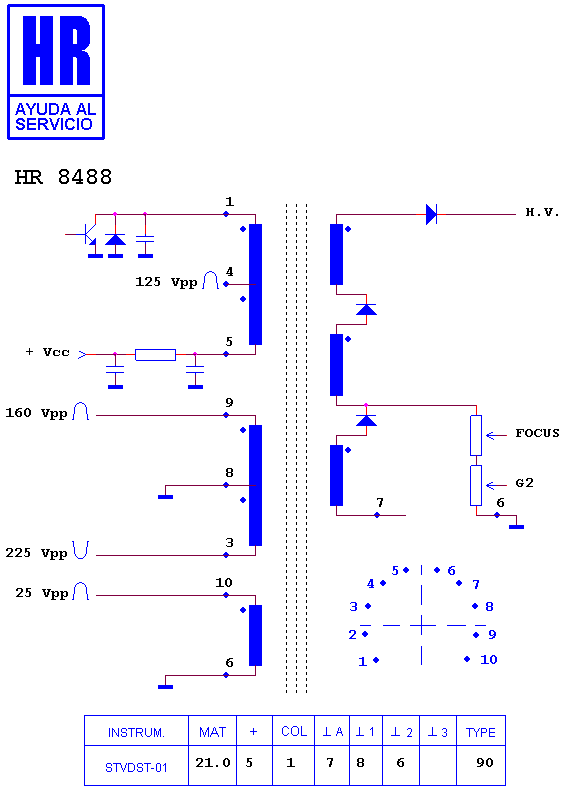

Schematic diagram for HR 8488
schematic (archived)

Manufacturer equivalents (8)

5062690110 · 87-0313-2 · 87-0313-2-001 · FAT30682 · FCV21A001 · FCV21A001A · S062690110 · T5062690110

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7283 · HR 7145 · HR 8289 · HR 7170 · HR 7184 · HR 8136 · HR 8799 · HR 8102 · HR 7146 · HR 8110 · HR 7066 · HR 8111

Fitted to (4)

DECCA COLOUR D 21 DB 5 · HITACHI CP 2155 TA · MATSUI 20 TN · TATUNG D 21 DB 5
