HR 8290

type ST · family 1XP1 · 38.4 kV maximum anode voltage · 110° deflection · 4 windings · 290 g

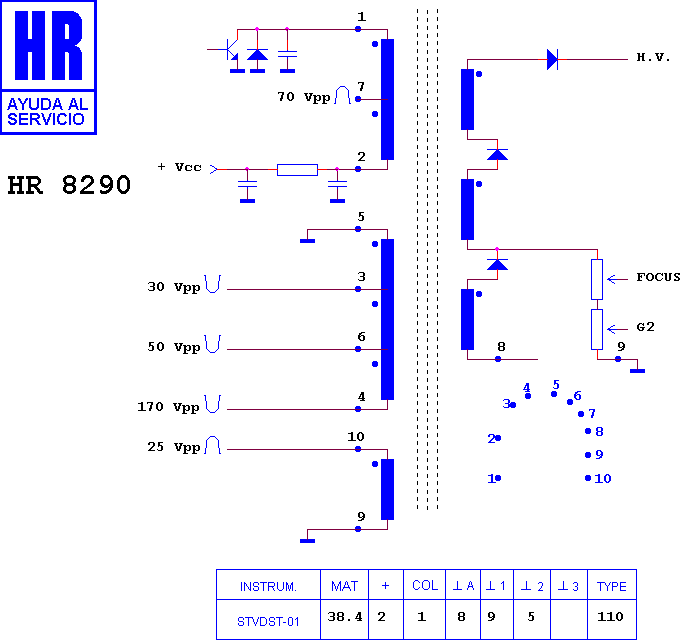

Schematic diagram for HR 8290
schematic

Manufacturer equivalents (9)

08210 · 08211 · 08212 · 08213 · 08214 · 140 17063 · 3306 130 08211 · 4806 140 17063 · AT2078/B1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7057 · HR 6554 · HR 6068 · HR 8846 · HR 6352 · HR 8002 · HR 6177 · HR 7993 · HR 8116 · HR 6245

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

PHILIPS 25 GX 1889 · PHILIPS 25 GX 1989 · PHILIPS 29 GX 1889 · PHILIPS CHASIS GR 6 LS PHONE · PHILIPS CHASIS GX
